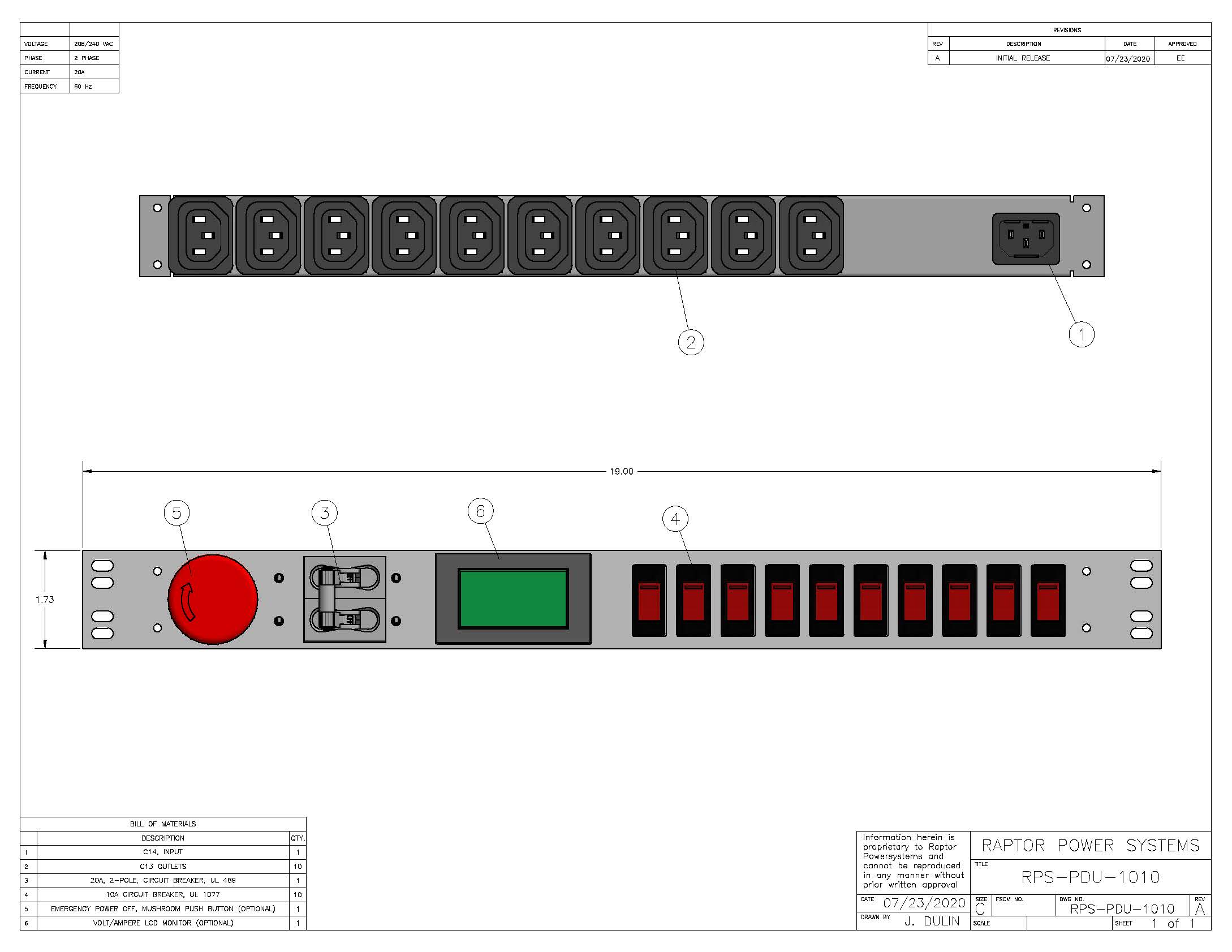

20A, 208/240V, 1U Rack Mount PDU | 10× C-13 Outlets | Dual Phase
This 20A, 1U PDU has 10× C-13 outlets, a C-14 dual-phase inlet with a 6ft power cord, and switched outputs. Accepts 208/240VAC dual-phase input.
| ENCLOSURE SPECIFICATIONS | |
| EMI Rated Enclosure | No |
| Enclosure Material | Aluminium/Steel |
| Enclosure Size | 1U x 8" |
| Enclosure Style | 19in Rack Mount |
| INPUT SPECIFICATIONS | |
| Frequency | 60Hz |
| Input Breaker UL Compliance | UL 489 |
| Input Circuit Protection | Switched 20 Amp Circuit Breaker |
| Input Voltage | 208VAC Single Phase; 240VAC Single Phase |
| Lightning Protection (MOV) | No |
| Phase | Dual Phase (line, line, ground) |
| Power Cord | 6ft SOOW |
| Total Current | 20 Amps |
| Input Connector | C-14 |
| OUTPUT SPECIFICATIONS | |
| Output Banking Scheme | 1 Outlet per Circuit Breaker |
| Output Breaker UL Compliance | UL 1077 |
| Output Circuit Protection | 10 x 10 Amp Switched Circuit Breakers |
| Output Connectors | 10 x C-13 |
| Output Phase | Dual Phase (line, line, ground) |
| Output Voltage | Synced to Input |
| PRODUCT DETAILS | |
| Compliance | ISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1 |
| Operating Temperature | 0C - 60C |
