RPS-PDU-1003

RPS-PDU-1003

20A, 120V, 1U Rack Mount PDU | 10× NEMA 5-20R Outlets

This 20A, 1U PDU has 10× 5-20R outlets, a 5-20P inlet with a 6ft power cord, and switched outputs.

ENCLOSURE SPECIFICATIONS
EMI Rated EnclosureNo
Enclosure MaterialAluminium/Steel
Enclosure Size1U x 8"
Enclosure Style19in Rack Mount
INPUT SPECIFICATIONS
Frequency60Hz
Input Breaker UL ComplianceUL 489
Input Circuit ProtectionSwitched 20 Amp Circuit Breaker
Input Voltage120VAC Single Phase
Lightning Protection (MOV)No
PhaseSingle Phase (line, neutral, ground)
Power Cord6ft SOOW
Total Current20 Amps
Input Connector5-20P
OUTPUT SPECIFICATIONS
Output Banking Scheme1 Outlet per Circuit Breaker
Output Breaker UL ComplianceUL 1077
Output Circuit Protection10 x 10 Amp Switched Circuit Breakers
Output Connectors10 x 5-20R
Output PhaseSingle Phase (line, neutral, ground)
Output VoltageSynced to Input
PRODUCT DETAILS
ComplianceISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature0C - 60C

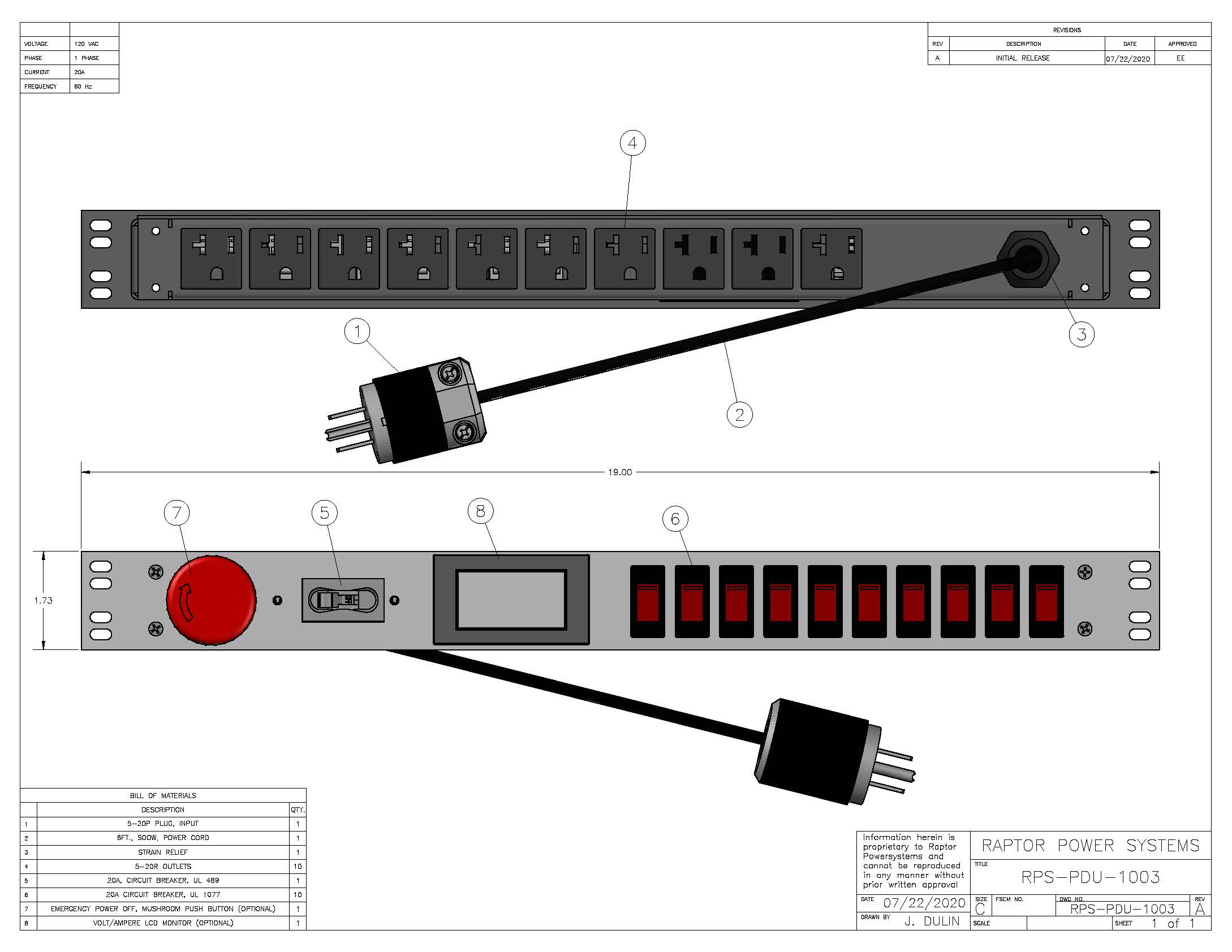

Drawing
