RPS-PDU-1047

RPS-PDU-1047

80A, Three-Phase WYE, 0U Vertical PDU | 54× C-19 Outlets

This 80A, 0U vertical PDU has 54× C-19 outlets, a three-phase WYE hardwire input (120/208VAC or 240/415VAC), a switched 80A circuit breaker, and 27× 20A output breakers with single-phase output.

ENCLOSURE SPECIFICATIONS
EMI Rated EnclosureNo
Enclosure MaterialAluminium/Steel
Enclosure Size4" x 4" x 88"
Enclosure Style0U Vertical Mount
INPUT SPECIFICATIONS
Frequency60Hz
Input Breaker UL ComplianceUL 489
Input Circuit Protection80A Switched Circuit Breaker
Input Voltage120VAC/208VAC Three Phase WYE; 240/415VAC Three Phase WYE
Lightning Protection (MOV)No
PhaseThree Phase WYE (line, line, line, neutral, ground)
Power CordN/A
Total Current80 Amps (Three Phase, 240A of Single Phase Load)
Input ConnectorInternal Hardwire
OUTPUT SPECIFICATIONS
Output Banking Scheme2 Outlets per Circuit Breaker
Output Breaker UL ComplianceUL 1077
Output Circuit Protection27 x 20A Switched Circuit Breakers
Output Connectors54 x C-19
Output PhaseSingle Phase (line, neutral, ground)
Output VoltageSynced to Input
PRODUCT DETAILS
ComplianceISO 9001:2016 Quality Controlled
Operating Temperature0C - 60C
TAA CompliantNo

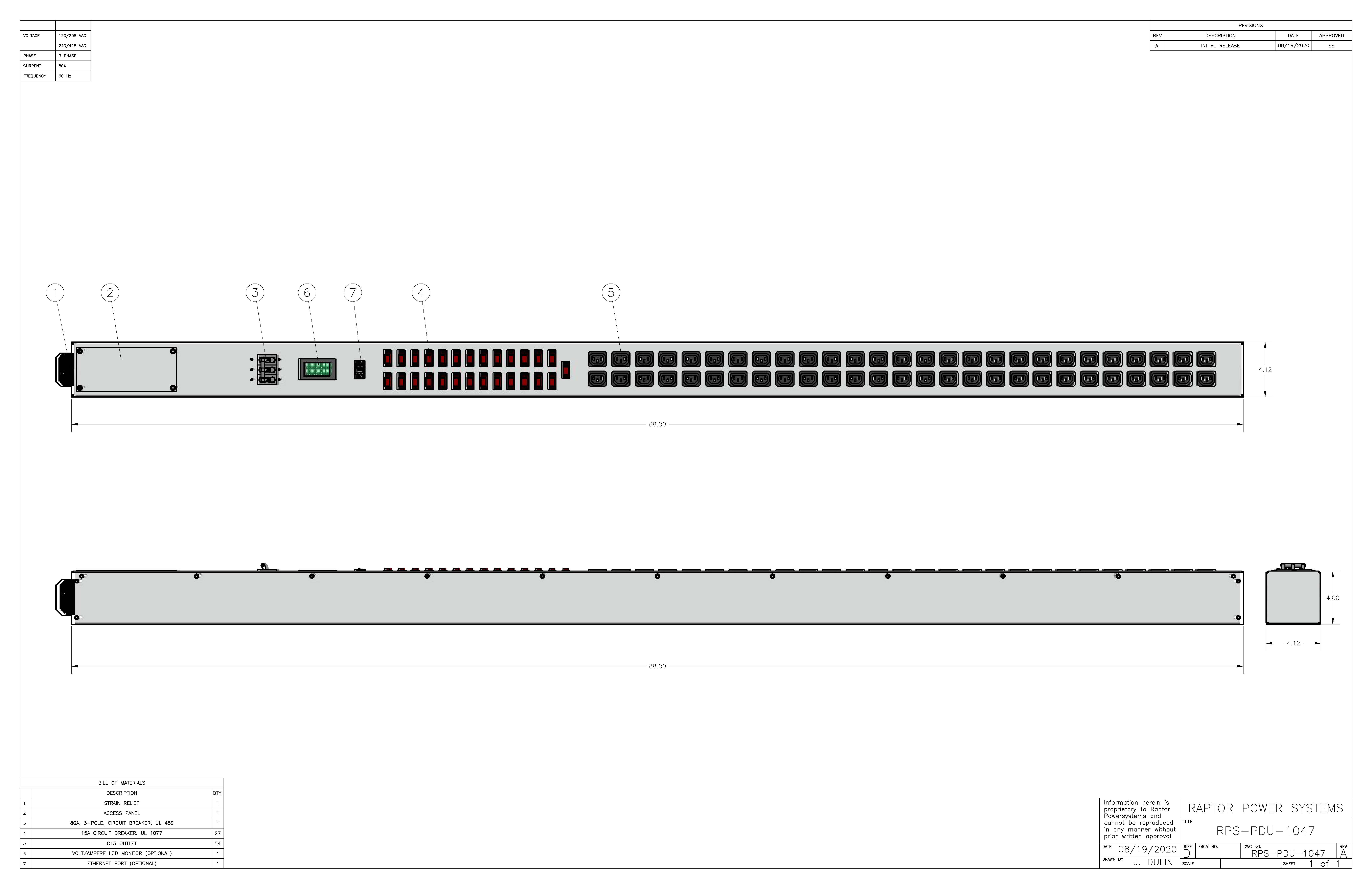

Drawing
