RPS-PDU-1002

RPS-PDU-1002

15A, 120V, 1U Rack Mount PDU | 10× NEMA 5-15R Outlets

This 15A, 1U PDU has 10× 5-15R outlets, a 5-15P inlet with a 6ft power cord, and switched outputs.

ENCLOSURE SPECIFICATIONS
EMI Rated EnclosureNo
Enclosure MaterialAluminium/Steel
Enclosure Size1U x 8"
Enclosure Style19in Rack Mount
INPUT SPECIFICATIONS
Frequency60Hz
Input Breaker UL ComplianceUL 489
Input Circuit ProtectionSwitched 15 Amp Circuit Breaker
Input Voltage120VAC Single Phase
Lightning Protection (MOV)No
PhaseSingle Phase (line, neutral, ground)
Power Cord6ft SOOW
Total Current15 Amps
Input Connector5-15P
OUTPUT SPECIFICATIONS
Output Banking Scheme1 Outlet per Circuit Breaker
Output Breaker UL ComplianceUL 1077
Output Circuit Protection10 x 10 Amp Switched Circuit Breakers
Output Connectors10 x 5-15R
Output PhaseSingle Phase (line, neutral, ground)
Output VoltageSynced to Input
PRODUCT DETAILS
ComplianceISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature0C - 60C

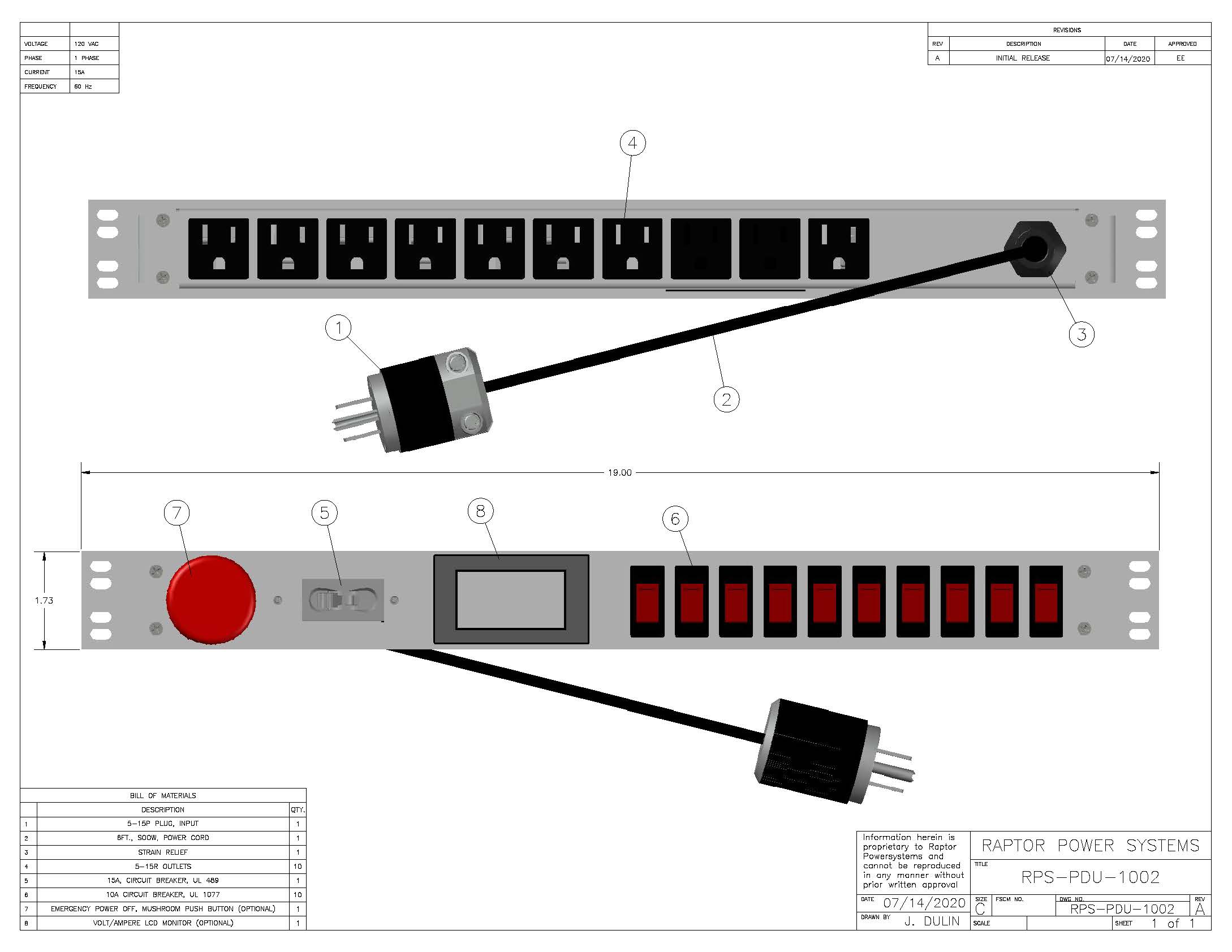

Drawing
