RPS-PDU-1027

RPS-PDU-1027

30A, 120/240V, 1U Rack Mount PDU | 10× C-13 Outlets

This 30A, 1U PDU has 10× C-13 outlets, a C-14 inlet with a 6ft power cord, and switched outputs. Accepts 120/240VAC single-phase input.

ENCLOSURE SPECIFICATIONS
EMI Rated EnclosureNo
Enclosure MaterialAluminium/Steel
Enclosure Size1U x 8"
Enclosure Style19in Rack Mount
INPUT SPECIFICATIONS
Frequency60Hz
Input Breaker UL ComplianceUL 489
Input Circuit ProtectionSwitched 30 Amp Circuit Breaker
Input Voltage120VAC Single Phase; 240VAC Single Phase
Lightning Protection (MOV)No
PhaseSingle Phase (line, neutral, ground)
Power Cord6ft SOOW
Total Current30 Amps
Input ConnectorC-14
OUTPUT SPECIFICATIONS
Output Banking Scheme1 Outlet per Circuit Breaker
Output Breaker UL ComplianceUL 1077
Output Circuit Protection10 x 15 Amp Switched Circuit Breakers
Output Connectors10 x C-13
Output PhaseSingle Phase (line, neutral, ground)
Output VoltageSynced to Input
PRODUCT DETAILS
ComplianceISO 9001:2016 Quality Controlled; Built to Meet UL 60950-1
Operating Temperature0C - 60C
TAA CompliantNo

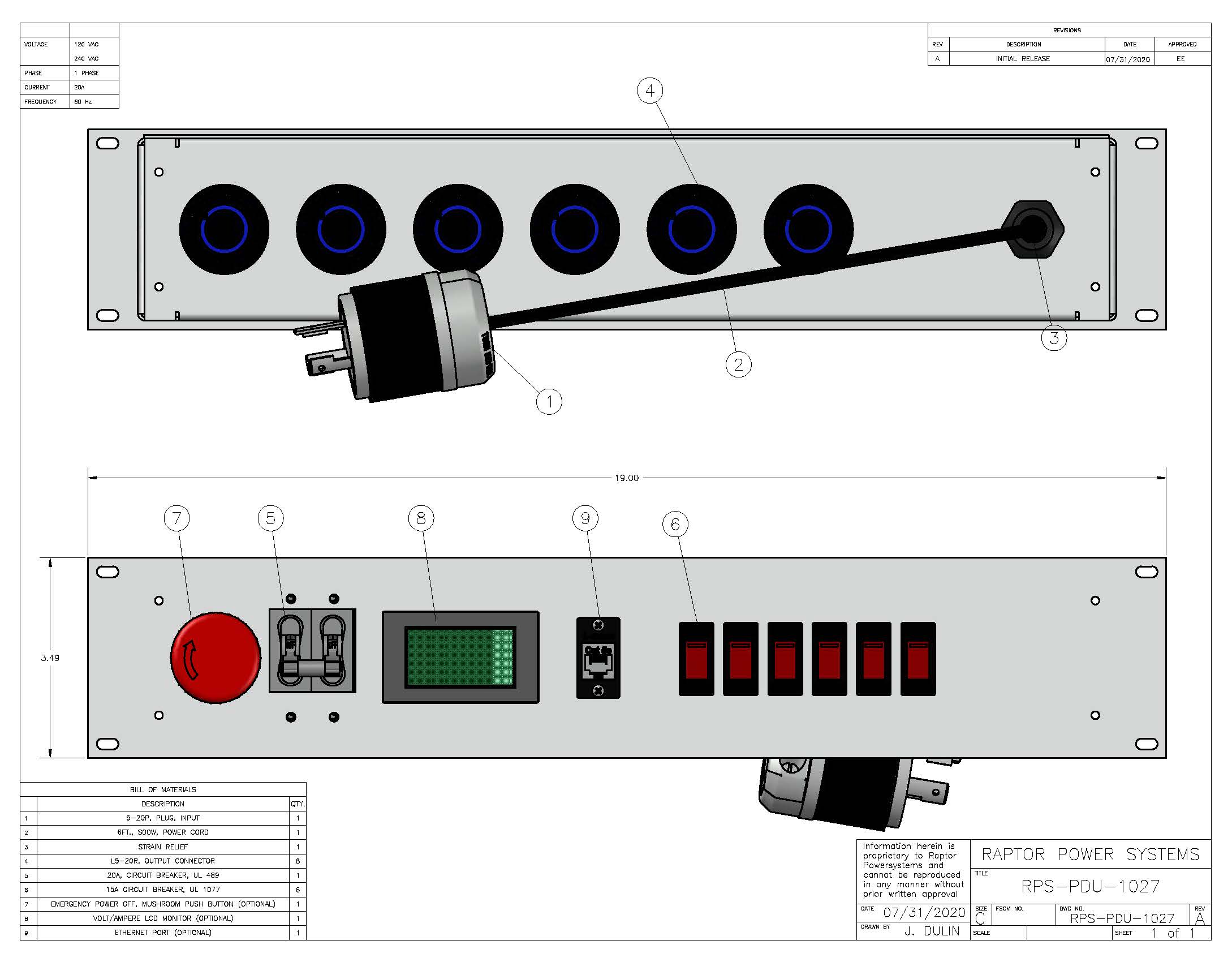

Drawing
